EV Charging Hardware
Engineered for India.

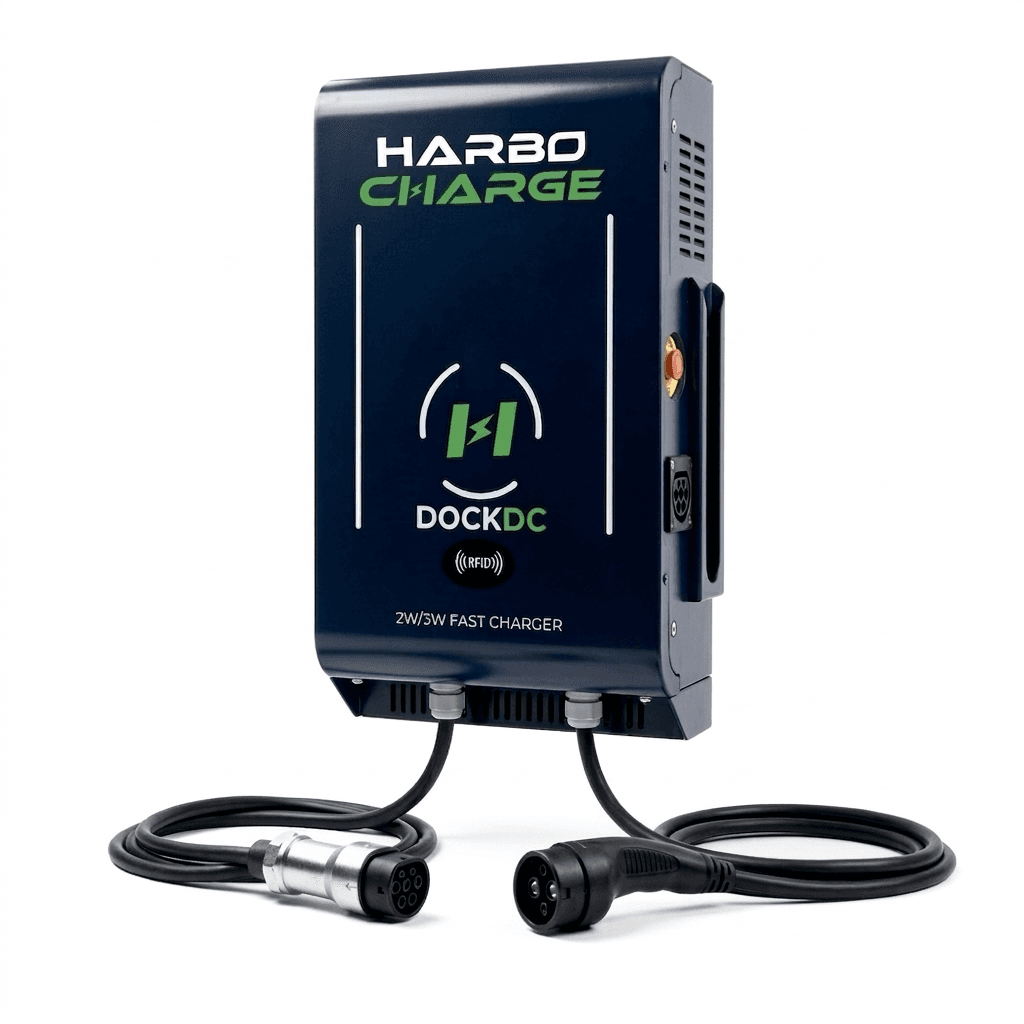

Dock DC Series
3kW DC Fast Charger for Electric 2-Wheelers
View Details & Calculate Earnings →
3kW DC
Direct Current Output
Triple Connectivity
Wi-Fi + 4G + Ethernet
IP54 + IK10
Weather & Impact Proof
OCPP 1.6J
Industry Standard Protocol
Built for Indian Roads
Built for Indian roads and Indian weather, the Dock DC Series delivers reliable 3kW DC charging for electric two-wheelers. Whether it's a scorching summer afternoon or a monsoon downpour, your charger keeps working.
Triple connectivity ensures your charger is always online. Wi-Fi for stable local networks, 4G for remote locations, and Ethernet for enterprise deployments — pick what works for your site, or use all three for maximum uptime.
IP54 + IK10 rating means this charger is weatherproof and impact-resistant. Install it outdoors in a parking lot, beside a highway, or inside a basement — it handles dust, rain, and the occasional bump without breaking a sweat.
Technical Specifications
| Input | 230VAC ±10%, 50Hz |
| Output | 30–60V DC, 50A |
| Power | 3kW |
| Connectors | Type 6 & Type 1 |
| Connectivity | Wi-Fi + 4G + Ethernet |
| Protection | IP54 + IK10 |
| Protocol | OCPP 1.6J |
| Dimensions | 850 × 450 × 181.5mm |
3.3kW AC
AC Output, All EVs
4G + Wi-Fi
Dual Connectivity
IP66 + IK10
Rain & Dust Proof
OCPP 1.6J
Smart & Connected

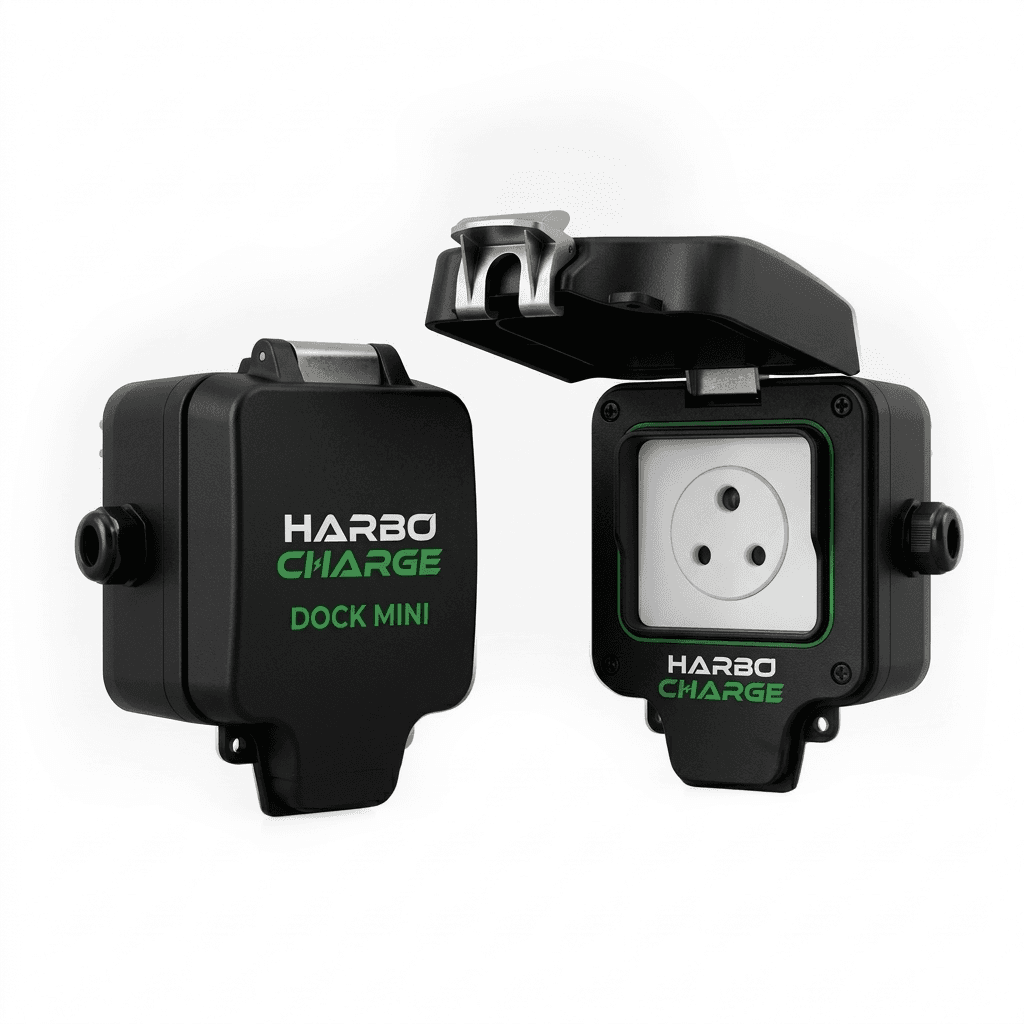

The Smallest Smart Charger in India
At just 166 × 117 × 42mm, the Dock Mini is ultra-compact and wall-mounted. It fits anywhere — a home garage, an apartment parking bay, a cafe wall, or a clinic entrance.
IP66 rated and fanless, it handles monsoons, dust storms, and extreme heat without a hitch. No moving parts means zero maintenance and silent operation.
OCPP 1.6J with 4G and Wi-Fi connectivity means you can monitor sessions, manage access via RFID, and push firmware updates remotely — all from the HarboCharge dashboard.
Technical Specifications
| Input | 230VAC ±10%, 50Hz |
| Output | 220V, 13A Max |
| Power | 3.3kW |
| Connector | Indian Standard Socket |
| Connectivity | Wi-Fi + 2G/4G + RFID |
| Protection | IP66 + IK10 |
| Protocol | OCPP 1.6J |
| Dimensions | 166 × 117 × 42mm |
Who Benefits Most
EV chargers earn revenue at any location with foot traffic and parking
Cafes & Restaurants
Customers charge while they eat
Salons & Spas
Perfect dwell time for charging
Shopping Malls
High footfall, high demand
Apartment Complexes
Residents charge overnight
Corporate Offices
Employee perk, all-day charging
Hotels & Resorts
Premium guest amenity
Fuel Stations
Add EV to your existing setup
Parking Lots
Monetize idle parking space
Fleet Depots
Charge your delivery fleet
College Campuses
Student & staff charging
Any location with parking and foot traffic can benefit from EV charging.
Want us to call you?
We'll call within 2 minutes.

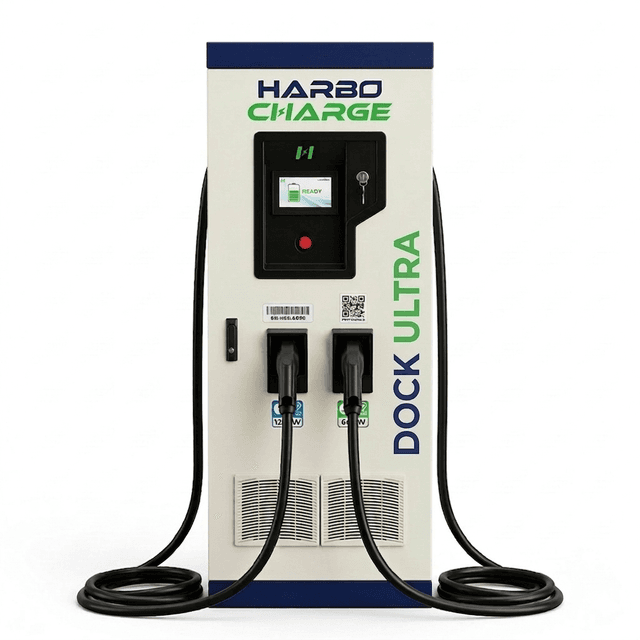

Dock Ultra
Up to 360 Kilowatts. Two Cars. Simultaneously.
120-360kW
Scalable Power
Dual CCS2
Two Cars At Once
7" LCD
Interactive Display
OCPP 1.6J
Network Ready
Technical Specifications
| Input | 410VAC ±10%, 3-Phase |
| Output | 200–1000Vdc, 200A |
| Power | 120–360kW |
| Connectors | CCS2 Dual |
| Protection | IP44 + IK10 |
| Protocol | OCPP 1.6J |
| Dimensions | 675 × 2012 × 690mm |
Which Charger Is Right For You?
Compare our three product lines
| Feature | Dock Mini | Dock DC | Dock Ultra |
|---|---|---|---|
| Type | AC | DC | DC |
| Power | 3.3kW | 3kW | 120–360kW |
| Vehicle Type | All EVs (2W/3W/4W) | 2-Wheelers | 4-Wheelers / Buses |
| Connector | Indian Standard Socket | Type 6 & Type 1 | CCS2 Dual |
| Charge Time | 6-8 hrs (full) | ~60 min (0-80%) | ~20 min (0-80%) |
| Connectivity | Wi-Fi + 4G + RFID | Wi-Fi + 4G + Ethernet | Wi-Fi + 4G + Ethernet |
| Protection | IP66 + IK10 | IP54 + IK10 | IP44 + IK10 |
| Best For | Homes, Apartments, Small Businesses | Cafes, Malls, Campuses | Highways, Fleets, Fuel Stations |
| Price | Starting ₹11,999 | Starting ~₹80,000 | Contact Us |
Why HarboCharge?
Platform-Ready
Every charger comes pre-configured for our CSMS platform. Monitor, manage, and monetize from day one.
Remote Everything
OTA firmware updates, remote restart, diagnostics — manage your fleet without leaving your desk.
Built for India
IP54 weatherproofing, wide voltage tolerance, triple connectivity — engineered for Indian conditions.
Lifetime Partnership
24/7 monitoring, preventive maintenance, dedicated support — we’re with you for the long run.
